| SPECIFICATION 1489 | |||||||||||||
| Designed for Steve Houseman |
10/05/00 | ||||||||||||
 Heat Bank Thermal Store System
Everest combination unit 450mm (18") diameter
Directly heated from remote source 35mm Foam Insulation
GX-Plan primary controls Directly Pumped Heating
Circuit RX1 Programmable Room
Thermostat All fitted controls are wired
Backup
Immersion Heater

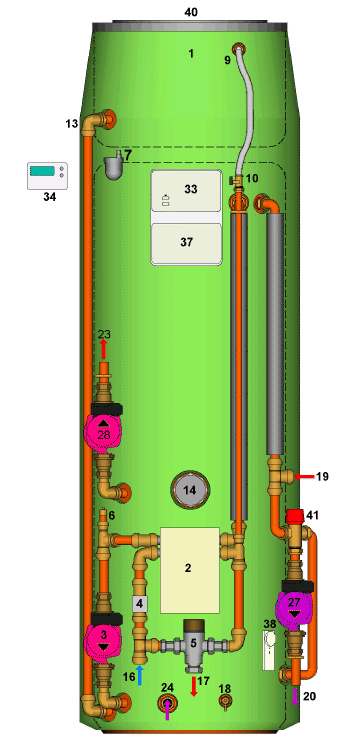

1 Integral Feed & Expansion Tank 2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve 6 Manual Air Vent 7 Automatic Air Vent 8 Filling Vent 9 Feed to Ball Valve 10 Isolating Valve 13 Cold Feed / Expansion 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In 17 Hot Mains Out 18 Drain Cock (supplied loose) 19 Flow From Boiler 20 Return to Boiler 23 Flow to Heating Circuit 24 Return from Heating Circuit 27 Boiler Pump UPS 15/50 28 Heating Circuit Pump UPS 15/60 33 Danfoss Radio Reciever 38 Cylinder Immersion Thermostat Danfoss ITC 40 Tight Fitting Lid 41 Primary Blending Valve |
| ||||||||||||
