Heat Bank Thermal Store System
Stowaway advanced F+E
28 Plate Heat Exchanger (45+ ltr/min)
Indirect
40mm Foam Insulation
High duty primary coil
Y-Plan primary controls
Fitted programmer
All fitted controls are wired
Manual Fill - No Overflow
28mm Primaries
Backup Immersion Heater
Low Water Level Indicator
PCB Wiring Centre
Cased



Unit Code

 SC-210-1937-2

Capacity [litres]

 210

Base Diameter [mm]

 450

Overall Diameter [mm]

 530

Height [mm]

 1630

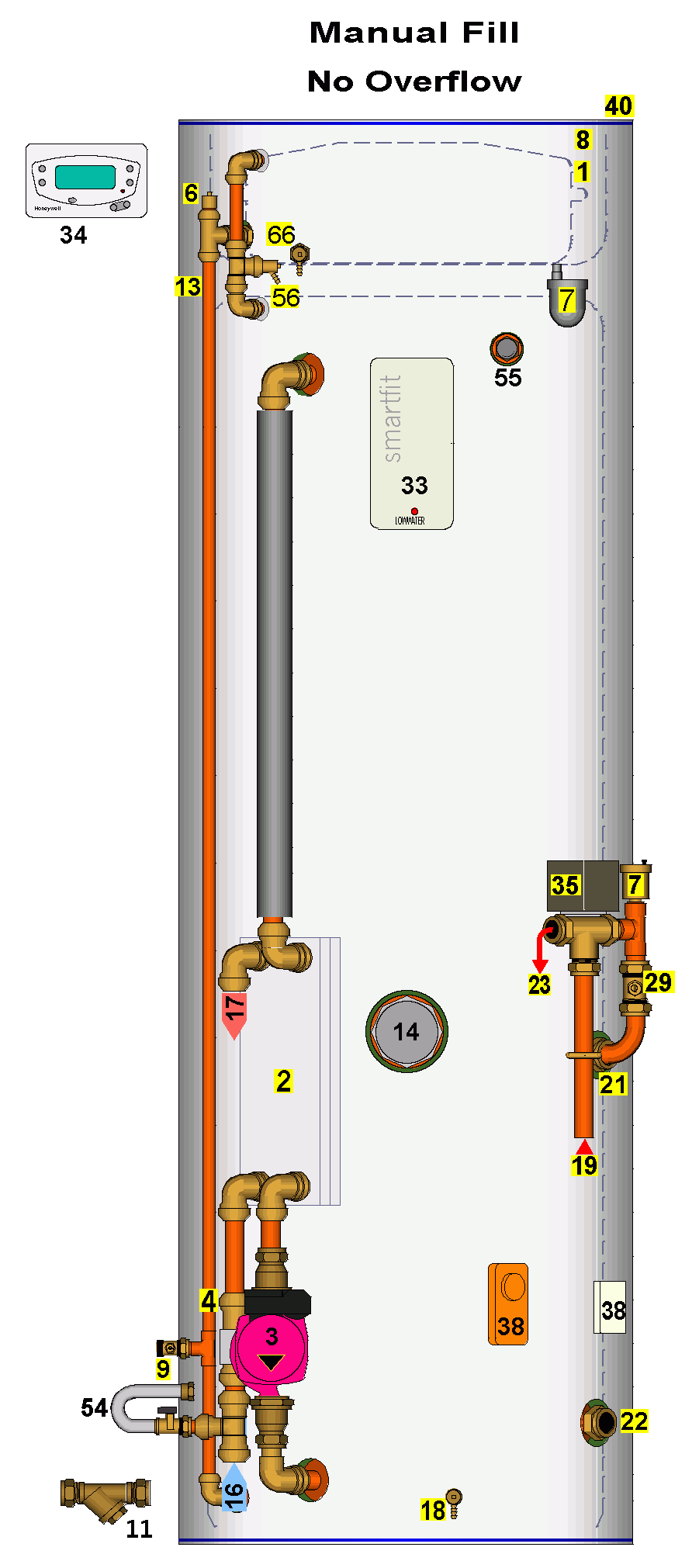

1   Integral Expansion Vessel (Unpressurised)
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
6   Manual Air Vent
7   Automatic Air Vent
8   Integral Overflow Chamber
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
13  Connection to Expansion Vessel
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler
21  Flow to Primary Coil
22  Return from Primary Coil
23  Flow to Heating Circuit
29  Primary Coil Balancing Valve
33  Programmer Danfoss CP715
35  Three Port Mid Position Valve
38  Cylinder Immersion Thermostat
39  White Coated Steel Casing
40  Tight Fitting Lid
42  Wiring Centre
54  Filling Loop (disconnect after use)
55  Water Level Switch
56  Manual Water Level Test and Drain
66  Overfill Drain Cock


The unit is fitted with an Integral Overflow Chamber [8], which traps small volumes of water discharged as a result of overfilling. Water in the chamber can be drained off via the Overfill Drain Cock [66]. The unit MUST be watched during filling as excessive overfilling will result in over-spill onto the floor.
The unit is fitted with two heat exchangers, and is capable of delivering 45 litres/minute @45°C (80°C storage).
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
Heat Bank Thermal Store System - Stowaway advanced F+E
As per specification 1937-2, 28-03-01
Unit IDSizeNet Price
SC-210-1937-2210 litres, 450 x 1630mm£ 930.80
MYNUTE 20SEVokera Mynute 20SE System Boiler, 14 - 19.8 kW (67,576 Btu/h)£ 562.50
MYNUTE 28SEVokera Mynute System Boiler 28SE, 19.8-28kW (86,350 btu/h)£ 635.66
MYNUTE A1Standard horizantal flue kit including bend, 770mm flue£ 32.06

IMPORTANT:  BOILERS CAN ONLY BE SOLD AS PART OF A PACK.
Prices do not include VAT or Delivery.
Ready for collection 3-4 weeks from receipt of order.
Terms: 30 days from date of collection / dispatch. (account permitting)
Credit Cards accepted.
