Heat Bank Thermal Store System
Xcel Cylinder
28 Plate Heat Exchanger (45+ ltr/min)
Directly heated from remote source
40mm Foam Insulation
GX-Plan primary controls
Danfoss VMV20 UF Control Valve
Directly Pumped Heating Circuit
Underfloor Primaries
Fitted Primary Pump, 6m head
All fitted controls are wired
Thermostatic Blending Valve 22mm
Secondary Return Pump
Backup Immersion Heater
Cased
Primary Timeclock
Relay for switching underfloor pump 3PCO 10A
|
Unit Code |
XC-210-2001-2 |
|
Capacity [litres] |
210 |
|
Base Diameter [mm] |
450 |
|
Overall Diameter [mm] |
530 |
|
Height [mm] |
1550 |

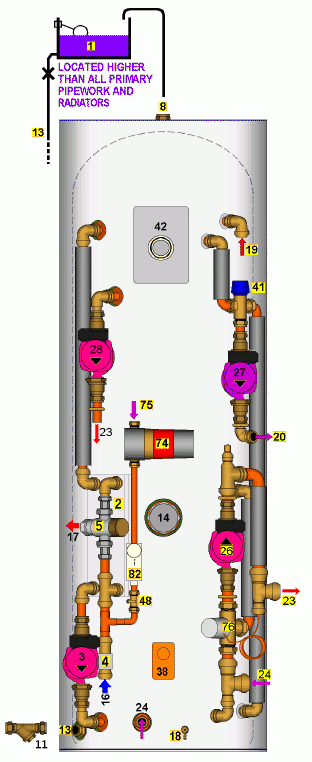

1 Remote Feed and Expansion Tank
2 Plate Heat Exchanger
3 Heat Exchanger Pump
4 Flow Switch
5 Thermostatic Blending Valve, Mixcall III
8 Vent
11 Y-Pattern Strainer (supplied loose)
13 Cold Feed / Expansion
14 Immersion Heater 3kW Incaloy with Stat
16 Cold Mains In, 22mm
17 Hot Mains Out, 22mm
18 Drain Cock
19 Flow From Boiler,
22mm
20 Return to Boiler, 22mm
23 Flow to Heating Circuits,
22mm
24 Return from Heating Circuit, 22mm
26 Underfloor Pump - Grundfos UPS
15/50
27 Primary Pump UPS 15/60
28 Heating Circuit Pump UPS 15/50
38 Cylinder Thermostat (with Immersion Pocket)
39 White Coated Steel Casing
41 Primary Blending Valve
42 Wiring Centre
48 Check Valve
74 UP 15 40-P Bronze Secondary Circulator
75 Secondary Return,
15mm
76 Danfoss VMV20 Valve with RAVK Sensor
82 Secondary Return Thermostat
|
|
